Pilot Light Problems? How to Get Your Furnace Fired Up Again

When Your Furnace Won't Fire Up: Understanding Pilot Light Problems

When your furnace pilot light goes out, your home heating system can't ignite the main burners - leaving you cold when Arizona temperatures drop unexpectedly.

Quick Answer for Furnace Pilot Light Issues:

1. What it is: A small, constantly burning flame that ignites your furnace's main burners
2. Where to find it: Usually at the bottom of your furnace behind a small access panel
3. How to relight: Turn gas valve to "OFF," wait 5 minutes, turn to "PILOT," hold reset button and ignite with long lighter
4. When to call help: If pilot won't stay lit after 2-3 attempts or you smell gas

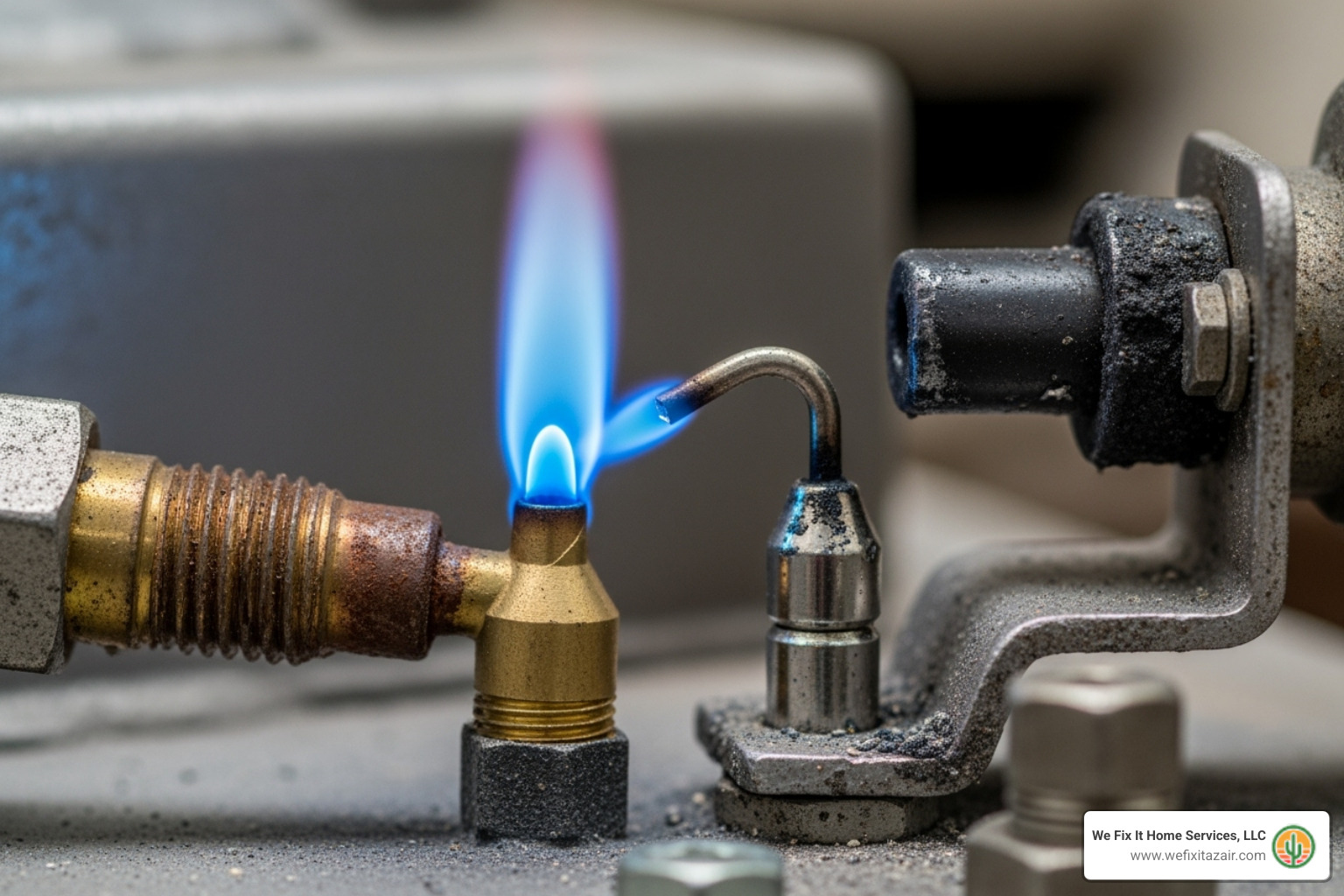

A pilot light is a small flame that stays lit constantly in older gas furnaces. It serves as the ignition source for your furnace's main burners when your thermostat calls for heat.

Most furnaces built before 2010 use this standing pilot system. If you see a small blue flame burning inside your furnace, you have a pilot light. No visible flame usually means your furnace uses electronic ignition instead.

The pilot light works with a safety device called a thermocouple. This metal sensor sits in the pilot flame and generates a small electrical signal that keeps the gas valve open. If the pilot goes out, the thermocouple cools down and shuts off the gas supply - preventing dangerous gas leaks.

While relighting a pilot light is often a simple DIY task, some issues require professional attention. Problems like faulty thermocouples, gas supply issues, or recurring outages need expert diagnosis to keep your home safe and warm.

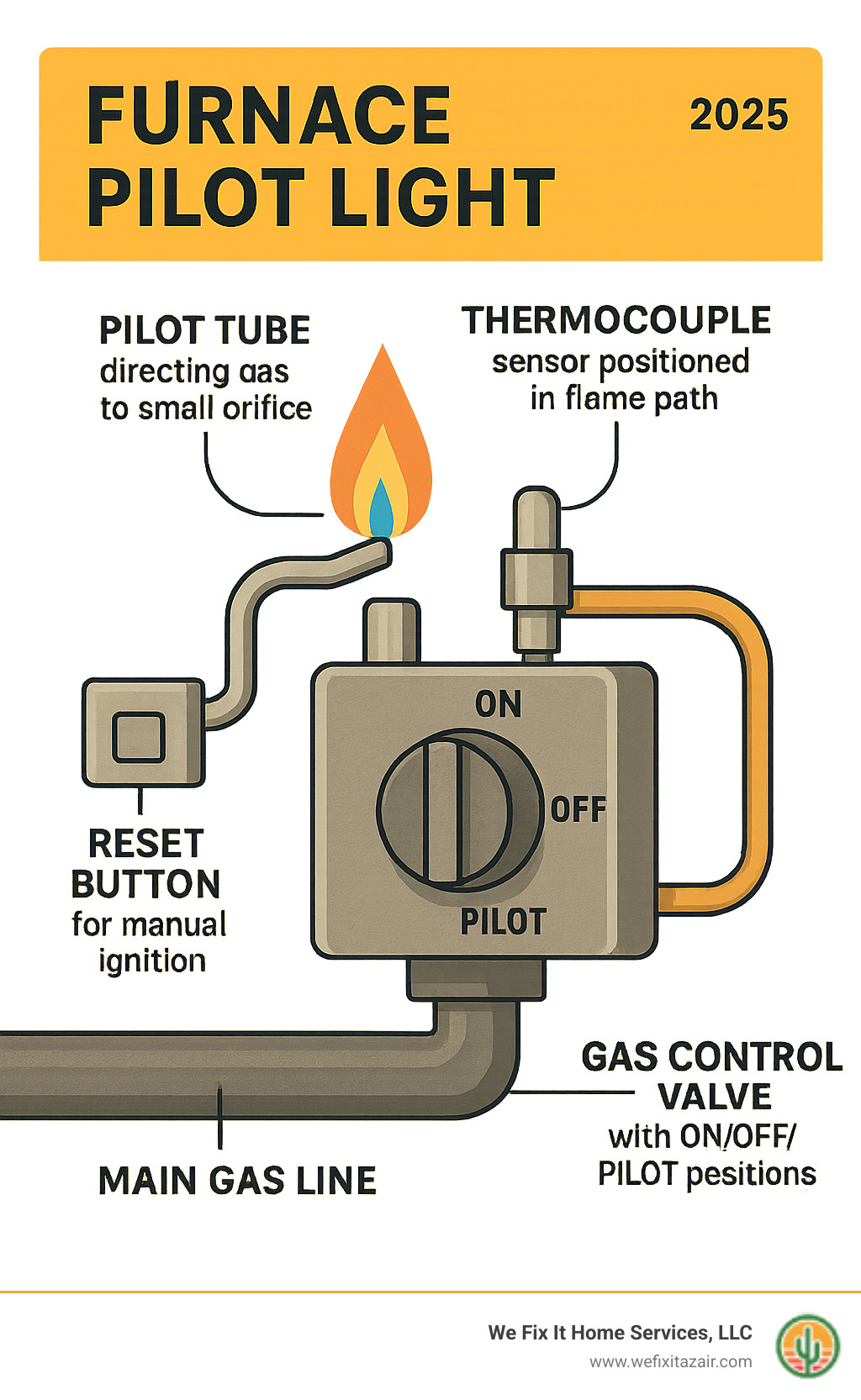

Understanding Your Furnace's Ignition System

Your furnace pilot light is like having a tiny campfire burning inside your heating system 24/7. Its job is simple but crucial: provide that spark of flame needed to ignite your main gas burners when your thermostat calls for heat. Many furnaces facilitate the combustion process with a pilot light, making this small flame the heart of your home's warmth.

Here's the thing though - not every furnace works this way. If your furnace is getting up there in years (we're talking 15-20+ years old), you likely have a standing pilot system where that little flame stays lit around the clock. But newer furnaces? They've moved on to electronic ignition systems that are a bit more high-tech.

The easiest way to tell what you're working with is to take a peek inside your furnace. See a small, steady blue flame burning away? That's your furnace pilot light. Don't see any flame at all? Your furnace probably uses electronic ignition instead, which only creates a spark or heated surface when you actually need heat.

Electronic ignition systems are definitely more energy-efficient since they're not constantly burning gas. But they're also more complex to troubleshoot. If your furnace isn't heating properly and you suspect it might be more than just a pilot light issue, our guide on Furnace Not Blowing Hot Air: Guide to Troubleshooting Common Furnace Issues can help you figure out what's going on.

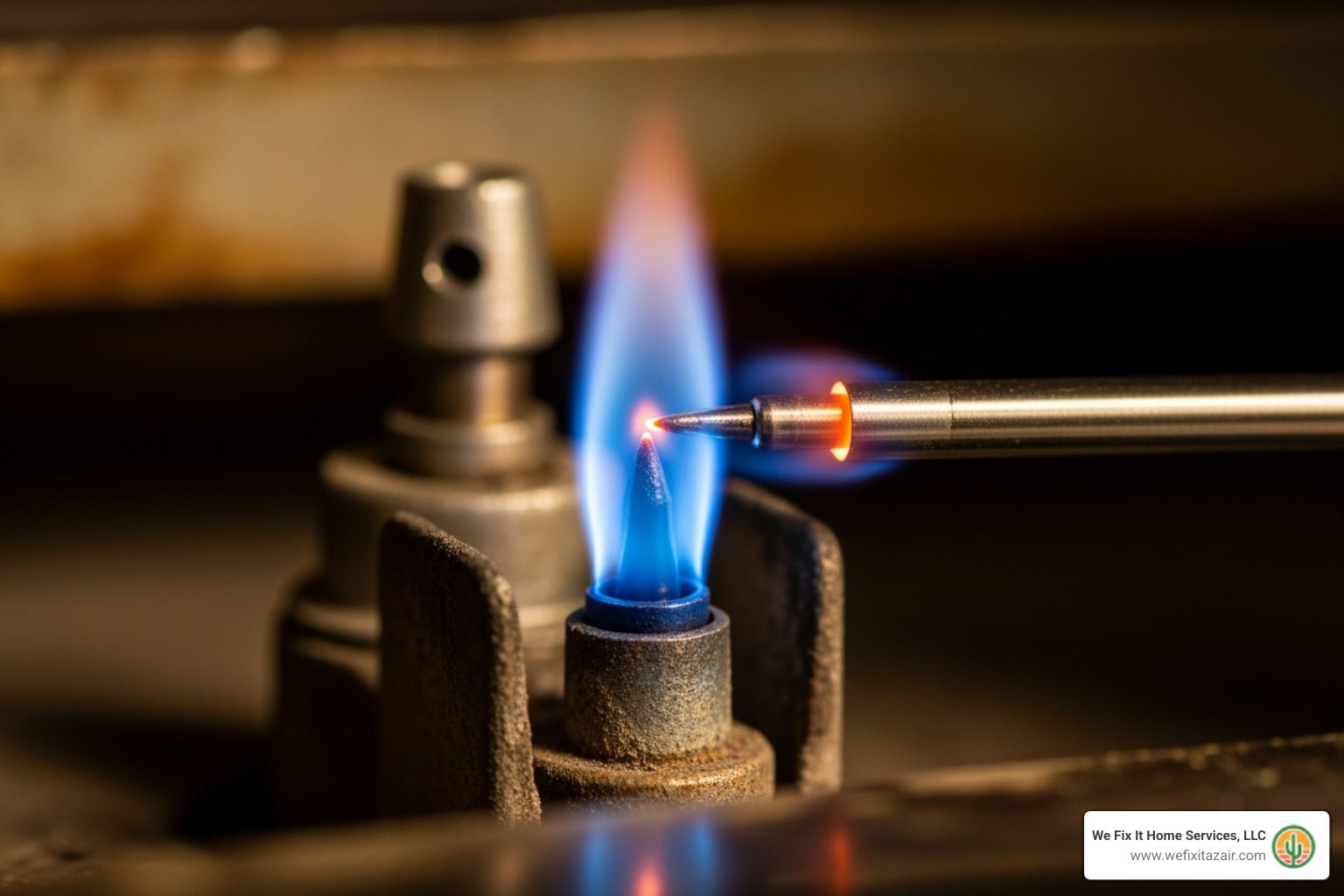

What is a Thermocouple and How Does it Work?

Every furnace pilot light has a silent partner working behind the scenes - the thermocouple. Think of it as your pilot light's bodyguard, constantly watching to make sure everything's safe.

This little metal sensor sits right in your pilot flame, getting heated up constantly. When it's hot, it creates a tiny electrical signal - we're talking millivolts here - that tells your gas valve "Hey, the pilot's still burning, keep the gas flowing."

But here's where it gets clever. If your furnace pilot light goes out for any reason, that thermocouple cools down fast. No heat means no electrical signal, which immediately tells the gas valve to slam shut. This prevents unburned gas from building up in your home - a safety feature that could literally save your life.

The downside? Thermocouples are also the most common reason pilot lights won't stay lit. When they start failing, they can't generate enough voltage to keep that gas valve open, even when the pilot flame is burning just fine. It's frustrating, but at least it's usually an inexpensive fix.

What Does a Healthy Pilot Flame Look Like?

A properly working furnace pilot light has a very specific look, and once you know what to watch for, you'll spot problems right away.

Your pilot flame should be bright blue and steady - no dancing around or flickering like a candle in the wind. That blue color tells you the gas is burning completely and efficiently, which is exactly what you want.

Now, if you see a yellow or orange flame, that's your furnace waving a red flag. This color means incomplete combustion is happening, which can create carbon monoxide - that dangerous, odorless gas you definitely don't want in your home. Yellow flames often point to a dirty pilot orifice that's not getting enough air, or the air-to-fuel mixture is off.

A weak or flickering flame is another warning sign. This usually means you've got insufficient gas pressure, a partially clogged pilot opening, or maybe a draft hitting the flame from somewhere. Any of these issues can cause your pilot to go out repeatedly, leaving you without heat when you need it most.

If your furnace pilot light isn't that perfect steady blue, don't ignore it. While cleaning a dirty pilot might be something you can handle yourself, persistent color changes or weak flames often need professional attention to keep your family safe and prevent carbon monoxide buildup.

How to Safely Relight Your Furnace Pilot Light: A Step-by-Step Guide

When your furnace pilot light goes out, relighting it might feel a bit nerve-wracking at first. But with the right preparation and a healthy respect for safety, it's actually something most homeowners can handle. Think of it like lighting a gas grill - just with a few more safety steps.

Before you start, grab a flashlight to help you see what you're doing, and either a long lighter or long matches. Those extra-long barbecue lighters work perfectly for this job and keep your hands safely away from the flame.

Here's the most important safety rule: If you smell gas at any point - that distinctive rotten egg odor - stop everything immediately. Don't try to light anything, don't flip switches, and evacuate your home right away. Call a professional from outside your house. Gas leaks are nothing to mess around with, and your safety is worth way more than a DIY repair attempt.

Step 1: Turn Everything Off and Locate the Assembly

Let's start by powering everything down properly. First, walk over to your thermostat and turn it all the way down or switch it to "OFF." This tells your furnace to take a break while you work.

Next, find your furnace's power switch - it usually looks like a regular light switch and might be mounted on the furnace itself or on a nearby wall. Flip that to "OFF" too.

Now comes the detective work. You'll need to locate your gas control valve, which typically sits near the bottom of your furnace. Look for a knob or dial with three settings: "ON," "OFF," and "PILOT." Turn this knob to the "OFF" position.

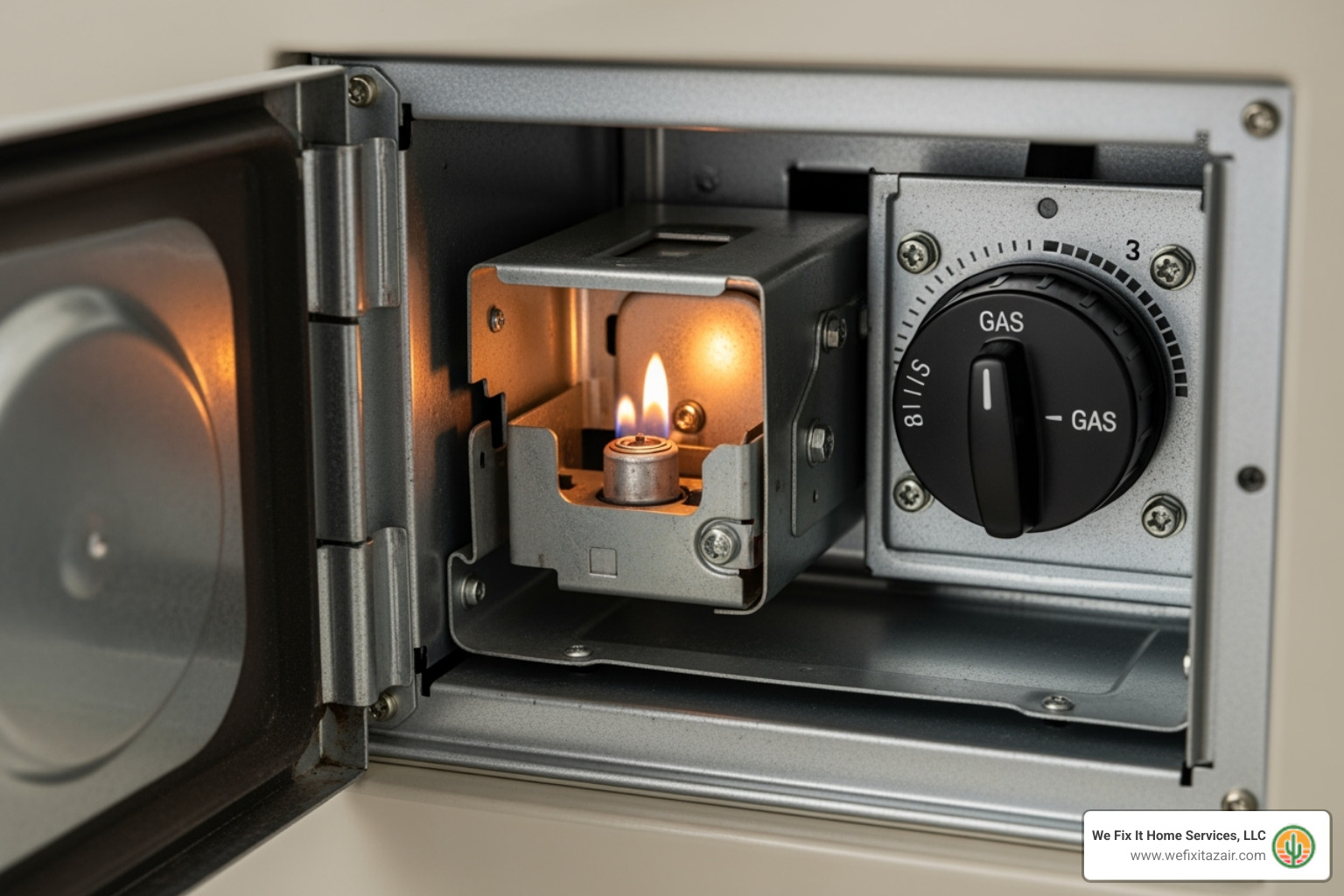

The pilot light assembly itself is usually tucked away behind a small access panel or visible through a little window near the main burners. If you're playing hide-and-seek with your pilot light, don't be shy about checking your owner's manual - it's like having a treasure map for your specific furnace model.

Step 2: Wait for Gas to Dissipate

Here's where patience becomes your best friend. After turning that gas valve to "OFF," you absolutely must wait at least five minutes. We know it's tempting to rush, especially when you're cold, but this waiting period lets any lingering gas safely clear out of the system.

Skipping this step is like trying to light a campfire with gasoline - it can lead to a dangerous flash or even an explosion. Use this time to double-check that you have your lighter ready and maybe crack open a window near your furnace area for some extra ventilation.

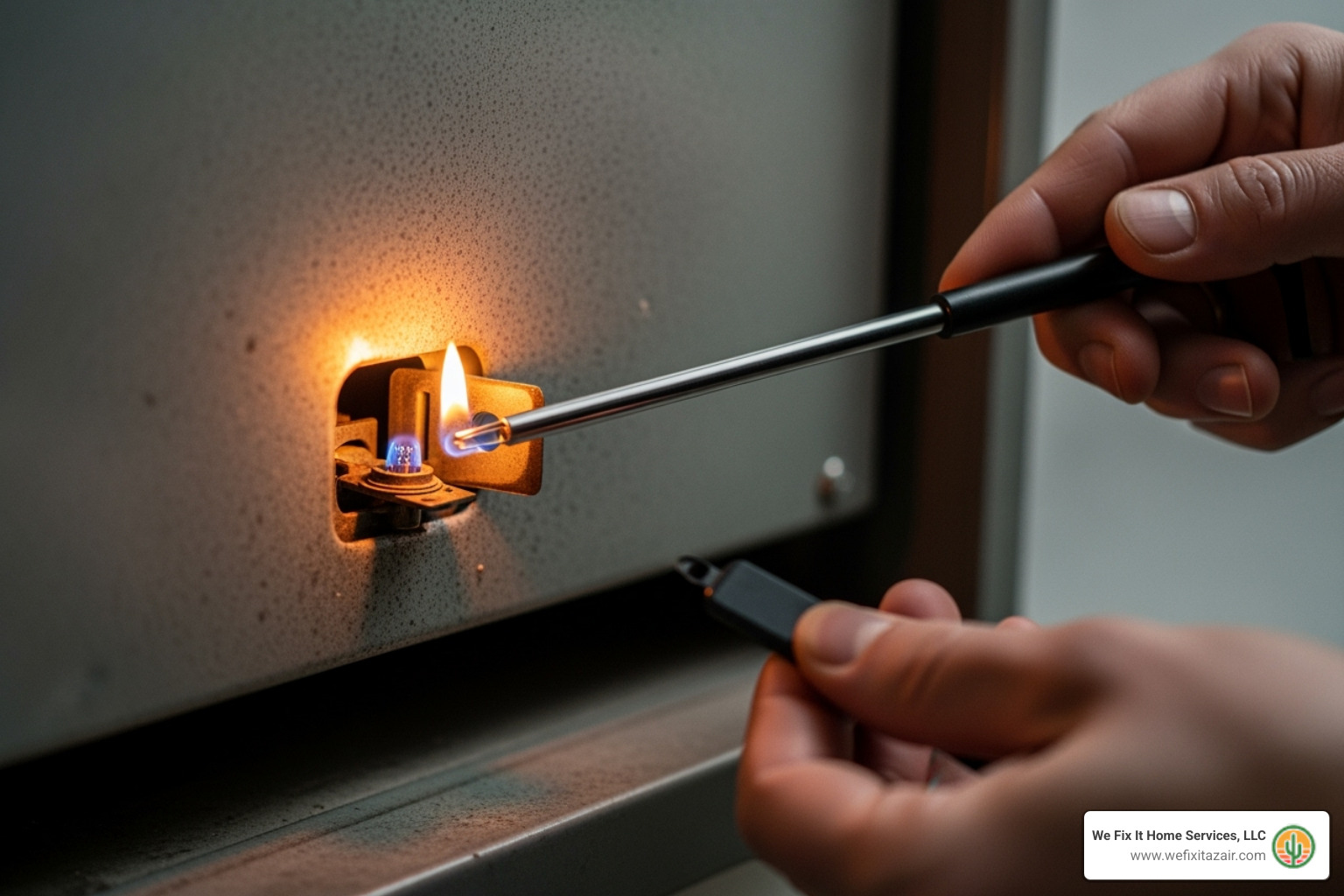

Step 3: Relight the Pilot Flame

After your five-minute timeout, it's showtime. Turn your gas control knob from "OFF" to "PILOT." You should see a small button nearby labeled "reset" or "pilot" - this is your new best friend.

Press and hold that reset button down firmly. This opens the gas flow to just the pilot light. While you're holding the button, bring your long lighter or match to the pilot opening - you should see the small flame catch right away.

Here's the crucial part: once that furnace pilot light is burning, keep holding that reset button for 30 to 60 seconds. This gives the thermocouple time to heat up and send its "all clear" signal to the gas valve. Think of it as letting your furnace's safety system wake up and recognize that everything's working properly.

When you slowly release the button, that pilot flame should keep burning steadily. If it goes out, don't panic - just start the whole process over from step one, making sure you hold that button a bit longer this time.

Once your pilot light is burning like a champ, turn the gas control knob from "PILOT" to "ON." Finally, flip your furnace power switch back on and set your thermostat to a comfortable temperature. Your furnace should spring back to life and start warming your home.

If your furnace pilot light refuses to cooperate after a couple of tries, or if it lights but won't stay lit, it's time to call in the professionals. Sometimes the best DIY decision is knowing when to ask for help.

Troubleshooting a Pilot Light That Won't Stay Lit

Here's the frustrating scenario: you've successfully relit your furnace pilot light, felt proud of your DIY skills, and then wake up the next morning to a cold house because it went out again. When your pilot light repeatedly extinguishes, it's trying to tell you something important about your furnace's health.

Recurring pilot light issues aren't just annoying - they can signal safety concerns or efficiency problems that need attention. While relighting once might be a simple fix, having to do it repeatedly means there's an underlying issue at play. Our guide on Top Furnace Repair Issues covers many of the problems that can cause these persistent outages.

Professional technicians have a rule of thumb that's worth following: if you have followed the above steps on how to light a furnace more than twice and the pilot light won't light or won't stay lit when you release the "Reset" button, something is wrong with the furnace and you need to contact a furnace professional. Continuing to attempt relighting beyond this point could worsen the problem or create safety hazards.

Common Reasons Your Furnace Pilot Light Goes Out

Several culprits can cause your furnace pilot light to keep going out, and understanding them helps you know when you can tackle the problem yourself versus when to call for help. When you might have a problem that goes beyond simple relighting, these are the usual suspects:

The faulty thermocouple tops the list of common problems. This small but crucial safety device can become dirty, corroded, or simply wear out over time. When it can't generate enough electrical current to signal the gas valve, your pilot light will go out as a safety precaution. Sometimes the thermocouple gets knocked out of position, preventing it from properly sensing the flame.

A clogged pilot orifice creates another common headache. This tiny opening that delivers gas to your pilot light can accumulate dust, dirt, or debris over months and years of operation. When partially blocked, it restricts gas flow and creates a weak, unstable flame that's easily extinguished.

Strong drafts might seem unlikely in an enclosed furnace, but they're more common than you'd think. Open windows, doors, or even air leaks in your ductwork can create air currents that blow out the pilot flame. Poor ventilation or problems with your furnace's flue system can also cause unwanted airflow.

Insufficient airflow presents a different challenge. When your furnace can't breathe properly - often due to a severely dirty air filter - it can overheat and trigger safety shutoffs. Similarly, blocked intake vents can starve the pilot light of the oxygen it needs for proper combustion.

Finally, gas supply issues can cause intermittent problems. Low gas pressure from your utility company, a malfunctioning gas regulator, or problems with your furnace's internal gas valve can all prevent consistent fuel delivery to the pilot light.

What to Do When Your Furnace Pilot Light Keeps Going Out

When your furnace pilot light keeps going out, start with the simplest solutions before moving to more complex diagnostics. Always prioritize safety - if you're uncomfortable with any step, call a professional.

Clean the thermocouple first if you can access it safely. Turn off your furnace and let everything cool down completely. The thermocouple looks like a small metal rod positioned near the pilot flame. Gently clean it with fine-grade emery cloth or a soft brush to remove soot and corrosion. Be extremely careful not to bend or damage this delicate component.

Clean the pilot orifice next, but proceed with caution. This tiny opening requires a delicate touch - you can try using compressed air or a very thin needle to clear blockages. Work slowly and gently, as damage to this component requires professional repair.

Check for drafts around your furnace area. Look for open windows or doors that might create air currents. Make sure your furnace access panel is properly secured and that there are no obvious air leaks in your ductwork. Inspect the area around your furnace flue for proper installation and sealing.

Replace your air filter - this simple step fixes more furnace problems than you might expect. A clogged filter restricts airflow and can cause your furnace to overheat, triggering safety shutoffs that extinguish the pilot light. During heating season, check your filter monthly and replace it every 1-3 months depending on usage and air quality.

Check gas supply to other appliances in your home. If your gas stove, water heater, or other gas appliances are also having issues, you might have a broader gas supply problem. Contact your utility company to ask about service interruptions or pressure issues in your area.

When these DIY steps don't solve the problem, it's time for professional help. Issues with gas valves, regulators, or heat exchangers require specialized tools and expertise to diagnose and repair safely. For reliable furnace repair services, our team provides Furnace Repair San Tan Valley AZ and serves the broader Pinal and Maricopa County areas with experienced, NATE-certified technicians.

Pilot Lights vs. Electronic Ignition: Is It Time for an Upgrade?

If you've been dealing with a finicky furnace pilot light that keeps going out, you might be wondering if there's a better way. The good news? There absolutely is. Modern furnaces have largely moved away from standing pilot lights to electronic ignition systems, and for very good reasons.

Think about it: your furnace pilot light burns 24/7, even during Arizona's hot summers when you're not using heat for months. That little flame might seem insignificant, but it's constantly consuming gas - like leaving a small burner on your stove running all year long. Electronic ignition systems only use gas when your furnace actually needs to fire up, making them much more energy-efficient.

The difference in efficiency is substantial. ENERGY STAR models with electronic ignition can achieve AFUE ratings of 94% to 98.5%, compared to older pilot light systems that typically max out around 80-85%. This translates to real savings on your energy bills, especially during Arizona's surprisingly chilly winter nights.

Reliability is another major advantage. No more middle-of-the-night pilot light outages leaving you scrambling with a flashlight and long lighter. Electronic ignition systems are far less prone to the drafts, dirt, and thermocouple failures that plague traditional pilot lights.

If your furnace is giving you frequent headaches or approaching that 15-20 year mark, it might be time to consider an upgrade. Our guide on When to Opt for a Furnace Replacement can help you weigh your options.

Comparing Standing Pilot Light vs. Electronic Ignition

Modern furnaces bring several compelling benefits beyond just eliminating pilot light problems. Lower energy bills from improved efficiency mean the furnace can pay for itself over time. Improved reliability means fewer service calls and more consistent comfort. Advanced safety features provide better protection than the simple thermocouple system. Many newer models also operate much more quietly and have a smaller carbon footprint due to their efficient operation.

While a well-maintained furnace can last 15-20 years or more, frequent pilot light issues often signal that other components are aging too. If you're spending more time troubleshooting your furnace pilot light than enjoying consistent heat, upgrading to a modern system might be the smartest long-term solution for your Arizona home.

Frequently Asked Questions about Furnace Pilot Lights

Over the years, our NATE-certified technicians have heard just about every furnace pilot light question imaginable. Here are the ones that come up most often, along with honest answers to help you stay warm and safe.

Is it dangerous to relight a pilot light myself?

The short answer? It's generally safe if you follow proper procedures and use common sense. The key safety points are making sure you don't smell any gas before starting and giving the system a full five minutes to clear after turning everything off.

Most homeowners can handle relighting their furnace pilot light without issues. However, if you're feeling uncertain about the process, if the pilot keeps going out after two or three attempts, or if you catch even a whiff of that distinctive rotten egg smell, don't push it. Call a professional instead.

Trust your instincts here. If something feels off or you're not comfortable with any step of the process, there's no shame in getting expert help. Your safety is worth far more than the cost of a service call.

How much does it cost to fix a pilot light issue?

This really depends on what's actually causing the problem. Sometimes the issue is surprisingly simple - a quick cleaning of the pilot orifice might be all that's needed, and that's often a minimal expense.

Thermocouple replacement is one of the more common repairs we see, and it's relatively straightforward work. On the other hand, if you're dealing with gas valve problems or more complex internal issues, the repair naturally becomes more involved.

The best way to avoid costly repairs? Regular maintenance. Many pilot light problems develop gradually and can be caught early during routine service. Our guide on the Importance of Gas Furnace Maintenance explains how preventive care can save you money and headaches down the road.

Why is my pilot flame yellow instead of blue?

A yellow or orange furnace pilot light flame is your furnace's way of waving a red flag. A healthy pilot flame should always be a steady, bright blue color. When you see yellow or orange, it means the gas isn't burning completely.

This incomplete combustion usually happens when the pilot isn't getting enough air, often due to a dirty pilot orifice that's restricting airflow. Sometimes it's a sign that the gas-to-air mixture is off balance somewhere in the system.

Here's the important part: incomplete combustion can create carbon monoxide, which is colorless, odorless, and extremely dangerous. If you notice a yellow or orange flame, don't wait to address it. You can try cleaning the pilot assembly if you're comfortable doing so, but the safest bet is to call a qualified technician right away. This isn't the time to take chances with your family's safety.

Stay Warm with Professional Furnace Service

When your furnace pilot light keeps acting up, it's easy to feel frustrated - especially when you just want to stay cozy in your Arizona home. While we've covered plenty of DIY solutions in this guide, there's real wisdom in knowing when to call in the experts.

Some pilot light issues are perfect for the DIY approach. A simple relighting or basic cleaning might be all you need. But when that little flame keeps going out repeatedly, burns yellow instead of blue, or you just don't feel comfortable working around gas appliances, that's when professional help becomes invaluable.
